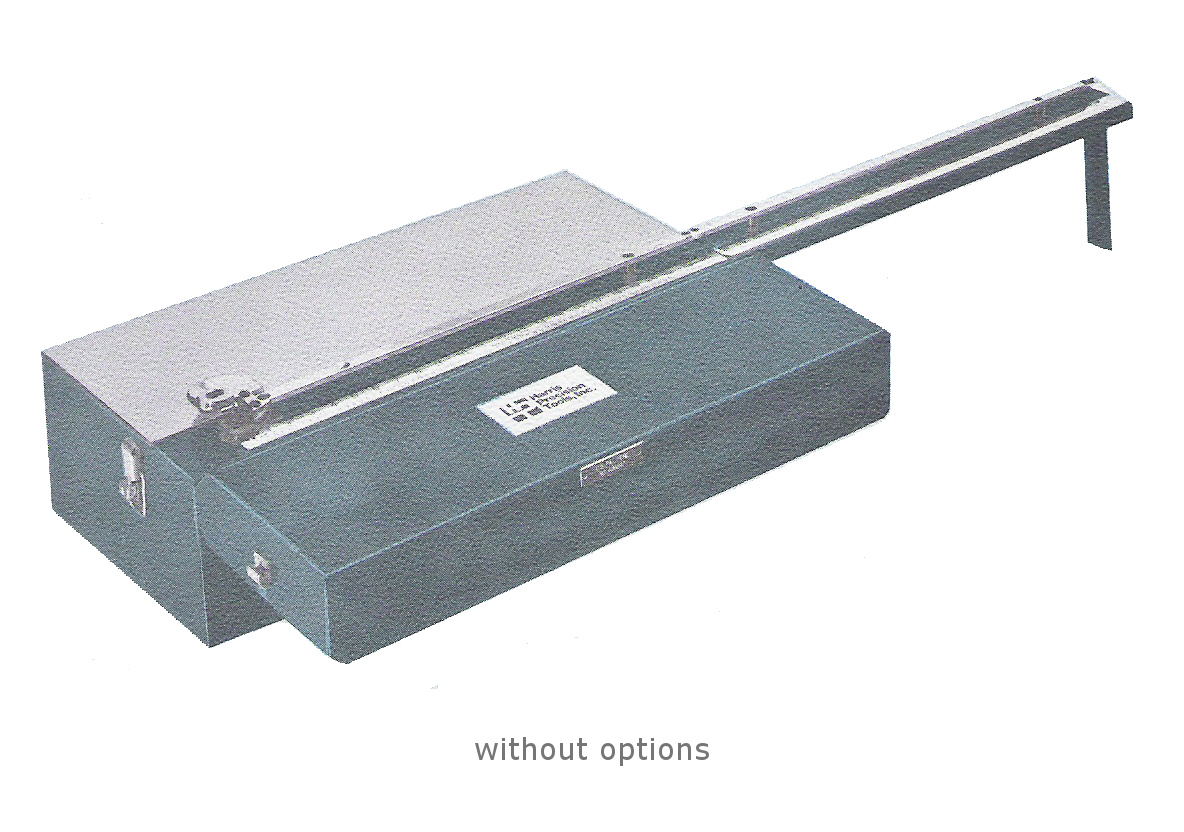

Metal Cutting Radial Shear
The Harris Precision Radial Shear cuts metal sheet stock up to 14 gauge with ease. Cut circles from 3 inches to 12 feet in diamater quickly and easily
No patterns are needed, make tapers, cones, collars, bevel edges, end caps, valves, heat exchangers, towers, and all types of piping. It can also do precision straight cuts with ease. Plus everything it does with metal it can do with PVC
Set up time is quick. Easy to read scale is built into the machine surface for fast measuring and reference points.
Completely portable, can be taken on the job site with no trouble or set up permanently for in shop operation.
Operates on 110V grounded plug-in electric.
Features:
Self Contained, Lightweight, and Quick Set-up
Cutting Capacity:
1 & 2 Piece End Caps
Tapers & Reducers
Stationary and Removable Tank Heads
Segmented Tapers & End Caps
Cones and Collars
Built in 20 Foot Retractable Extension Cord
Built in Circumference Ruler or Scale
Cutting Capacity:
1 & 2 Piece End Caps
Tapers & Reducers
Stationary and Removable Tank Heads
Segmented Tapers & End Caps
Cones and Collars
Built in 20 Foot Retractable Extension Cord
Built in Circumference Ruler or Scale
Specifications:
Weight: 55 Lbs.
Height: 9-1/2 Inches
Width: 13 Inches
Length: 28 Inches
Height: 9-1/2 Inches
Width: 13 Inches
Length: 28 Inches
Cutting Thicknesses:
Aluminum: 14 Gauge
Stainless Steel: 18 Gauge
P.V.C.: 14 Gauge
Cuts Circles: 3 Inches Dia. to 12 Feet Dia.
Power Requirements: 120 VAC 60 HZ 3.2 Amps
Aluminum: 14 Gauge
Stainless Steel: 18 Gauge
P.V.C.: 14 Gauge
Cuts Circles: 3 Inches Dia. to 12 Feet Dia.
Power Requirements: 120 VAC 60 HZ 3.2 Amps

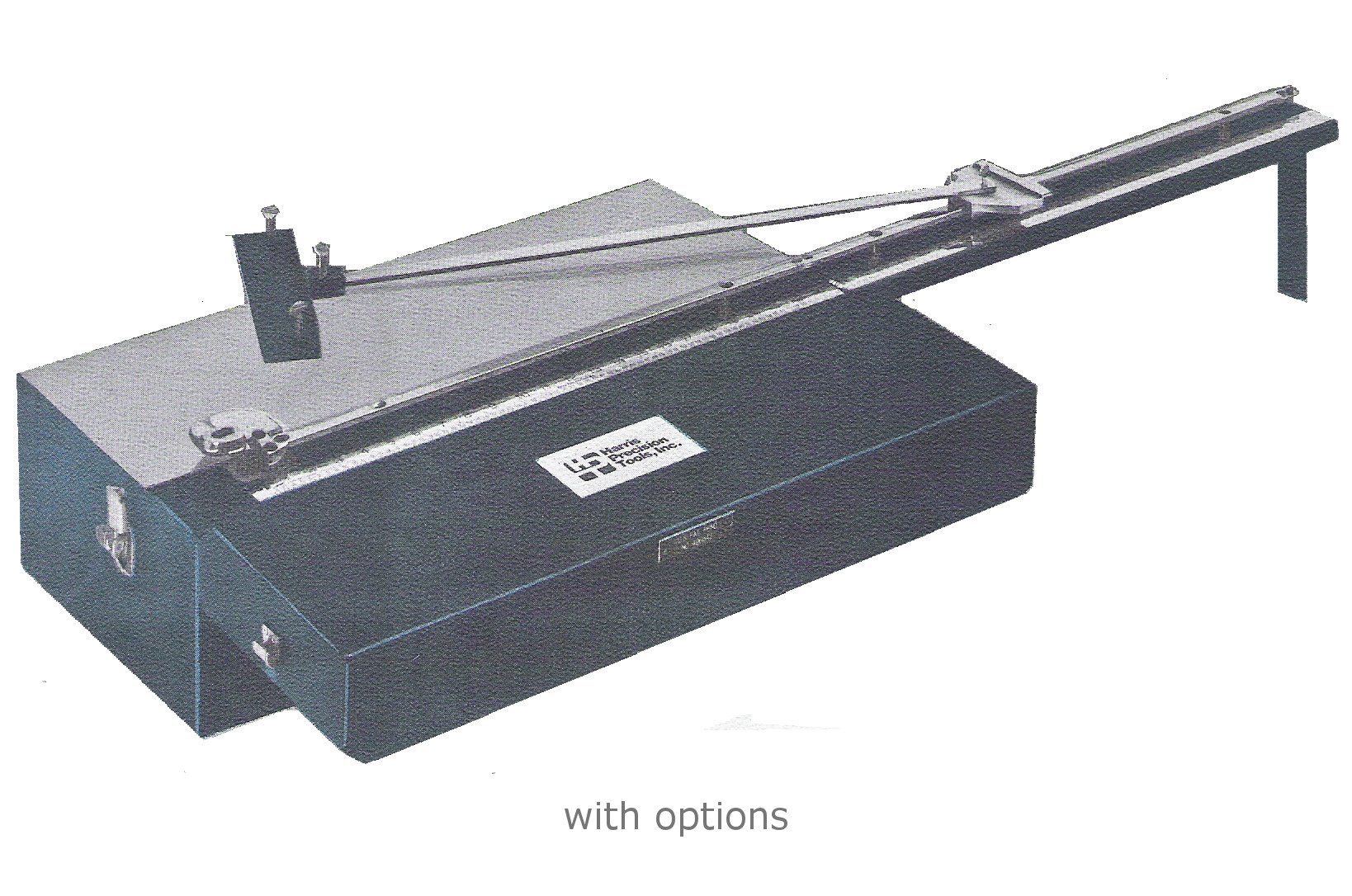

Available Option:
Fence and Fitting Cutting Option which lets you make the following:
Valves & Tees
Segmented Flange Covers
Straight Fencing Procedures
Valves & Tees
Segmented Flange Covers
Straight Fencing Procedures
